Product Name:

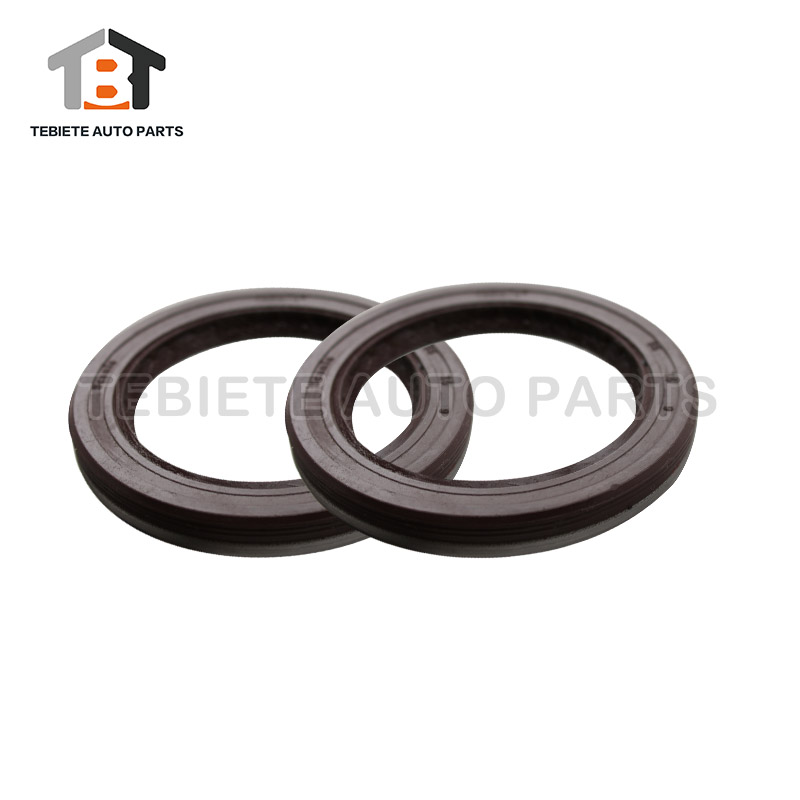

European Truck Scania Transmission Rubber Oil Seal 55x75x9
OEM: 2425395
Product Description:
| Product Name | Transmission Oil Seal |
| Materials | FKM or NBR HNBR FPM ACM PTFE SILICONE |
| Size | 55x75x9 |
| Truck Model | Scania |
| Temperature | NBR(-40~120°C), FFKM(-20~320°C), Viton(-20~200°C), Silicone (-70~220°C), EPDM(-50~150°C), PU(-40~90°C), |
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent, high temperature, abrasion resistant, aging resistant, insulation, acid and alkaline resistant |
| Certification | IATF 16949: 2016 / ISO 9001:2008 /SGS quality testing report |
| Hardness | 30-90 shores A |
| Color | Red,Black,White, blue, green,Clear,etc |
| Size | Any size, Customized/standard and nonstandard |
| Sample Time | If in stock, within 3 days after payment |
| Delivery Time | 10-20 days by shipping after final payment |
| Shipping | By Ships/Air |
| Customized | OEM & ODM are welcomed |
| Packing | Plastic bag&carton box or according to your requirements |
| NBR | Excellent resistant to oil, Low temperature resistant,widely used in industrial area |
| EPDM | Excellent resistance to weather and ozone, good resistance to heat, low temperature and chemical |
| NR | High elasticity, good chemical strength |
| CR | Generally good resistance to ozone, aging ,and chemical, good mechanical properties over a wide temperature range |
| SBR | Shock resistance,performance well in adhesion and sealing |
| SILICONE | Widest operating temperature range, performance stably in high and low temperature,widely use in food sealing area |
| VT/FKM | Excellent resistance to high temperature and a broad range of chemical, permeability and compression set are excellent |
| HNBR | Thermal stability and oxidation resistance |
| IIR | Low permeability rate and good electrical properties |
| MATERIAL | TEMP | ADANTAGES | LIMITATION |
| Nitrile Rubbrt (NBR) | -40~125℃ | ■Good oil and fuel resistance ■High tensile strength ■Low swelling in water | ■Poor weather and ozine resistance ■Poor resistance against polar lkuids ■Poor resistance against clhydrocarbon ■Poor resistance against aromatic fluids |
| Fluorinated Rubber (FKM) | -20~250℃ | ■The resistance against oil and fuels is better than other types ■The only highly elastic rubber whice is resistance to aromatci and chlornated hydrocarbons ■Exccllcent hcat resistance ■Exccllcent weather and ozonc resistance ■Exccllcent acid resistance ■Low swelling in water | ■Limited cold flexibliity ■Limited tensile and tear strength ■Limited wear resistance ■High compression set in hot water ■Poor resistance to polaric solvents |
| Polyacrylate Rubber (ACM) | -25~150℃ | ■Good oil and fuels resistance ■Good weater and ozone resistance | ■Not usable in contact with water and water solutions ■Limited cold flexibility ■Limited tensile strength and tear resistance ■Poor wear reisistance ■Poor resistance against polar and aromatic and chlorinared hydrocarhons |
| Silicone Rubber (VQM) | -60~225℃ | ■Best heat resistance of all rubber types
■Excellent low temp resistance of all rubber types
■Excellent weather and ozone resistance | ■Poor tensile and tear strength ■Poor wear resistance ■Sensitive to hydrolysis ■Poor resistance against aromatic oils and oxidized mineral oils ■Poor diffusion resistance |
FQA:
Q1. What is the payment term?
A: We accept a T/T 30% deposit and a 70% balance of a current bill of lading or a letter of credit.
Q2. What is the normal delivery time for product orders?
A: The average delivery time of the sample is 1-2 weeks. If the mold production is involved, the delivery cycle of the production mold is 10 days, and the average production time after the sample is approved is 1-2 weeks.
Q3. What is your standard packaging?
A: All goods will be packed in plastic bags and then packed in cartons and
filled with trays. Special packaging methods are accepted when needed, but charges may apply.
Q4. Which certificate do you have?
A1: we have passed IATF16949:2016 ISO9001:2007 certification and SGS quality testing.
Q5: How to check the quality of bulk orders?
A1: Our inspection procedures include, first inspection/patrol inspection/initial inspection/full inspection/shipment inspection.
A2: We provide quality certification to all customers before delivery, such as measurement reports, material data sheets, etc.
A3: We accept third party inspections
Q6: How do I choose a raw compound for my application?
A: With years of experience in using a variety of materials, we can help you choose the material that best suits your needs, keeping in mind the cost of materials.
Q7: Can you provide materials of different colors?
A: Yes, we can produce custom molded rubber and silicone rubber products in different colors. Color codes are required when ordering.
Q8: From which side can you produce which materials?
A: NBR, EPDM, silicone, FKM, NEOPRENE (CR), NR, IIR, SBR, ACM, AEM, fluorosilicon (FVMQ), FFKM, liquid silica gel, and the like.
